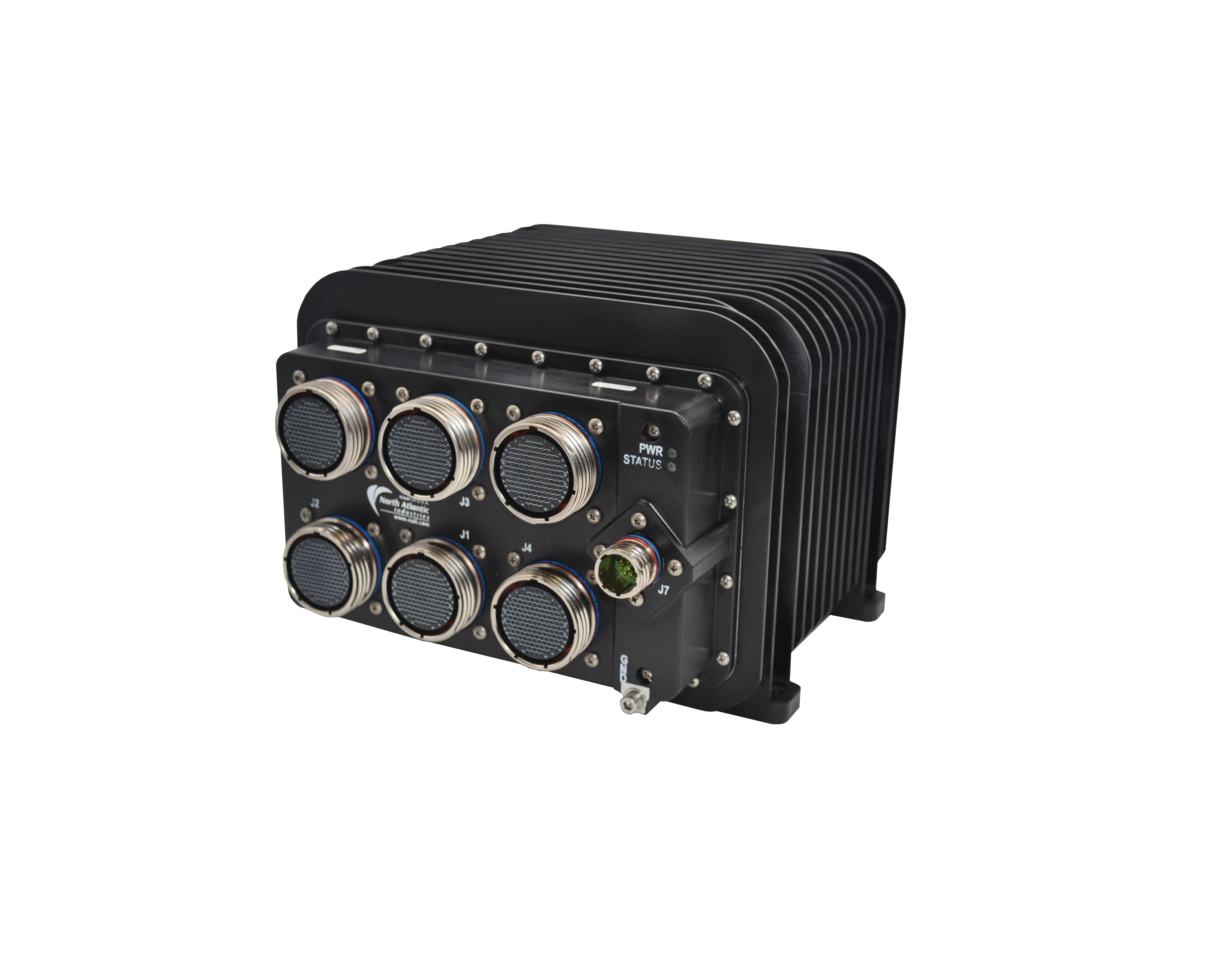

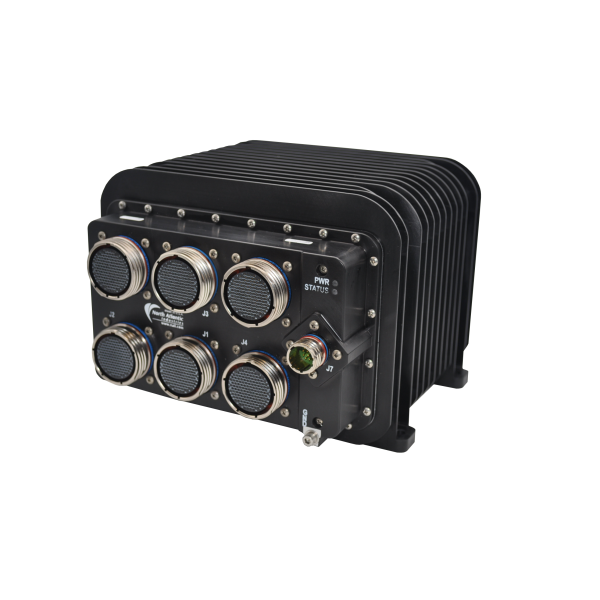

The SIU36 is a highly configurable rugged system or subsystem ideally suited to support a multitude of Mil-Aero applications that require high-density I/O, communications, Ethernet switching and processing. The SIU36 leverages NAI’s 3U boards to deliver off-the-shelf solutions that accelerate deployment of SWaP-optimized systems in air, land and sea applications.
Versatile & Scalable Rugged Architecture for Demanding Embedded System Applications Including: Data Acquisition (DAQ), Fire Control & Targeting System (FCTS), Remote Data Concentrator (RDC), Vehicle Management System (VMS) Data Concentrator Unit (DCU), Remote Interface Unit (RIU), Health and Usage Monitoring System (HUMS), Aircraft Interface Unit (AIU)
Features
- 6x 3U OpenVPX™ Card Slots, Supports up to 18 from 70+ smart function modules
- Local or External SBC Host I/F capable
- Processor Options: Freescale PowerPC™ QorIQ® T2080, Intel® Core™ i7 or ARM® Cortex® -A9 & -A53
- SBC-less remote interface supported via Ethernet connection to your mission computer
- Configurable I/O Communications and Processing
- COTS/NDI Sense & Response system
- Reduced SWaP Footprint

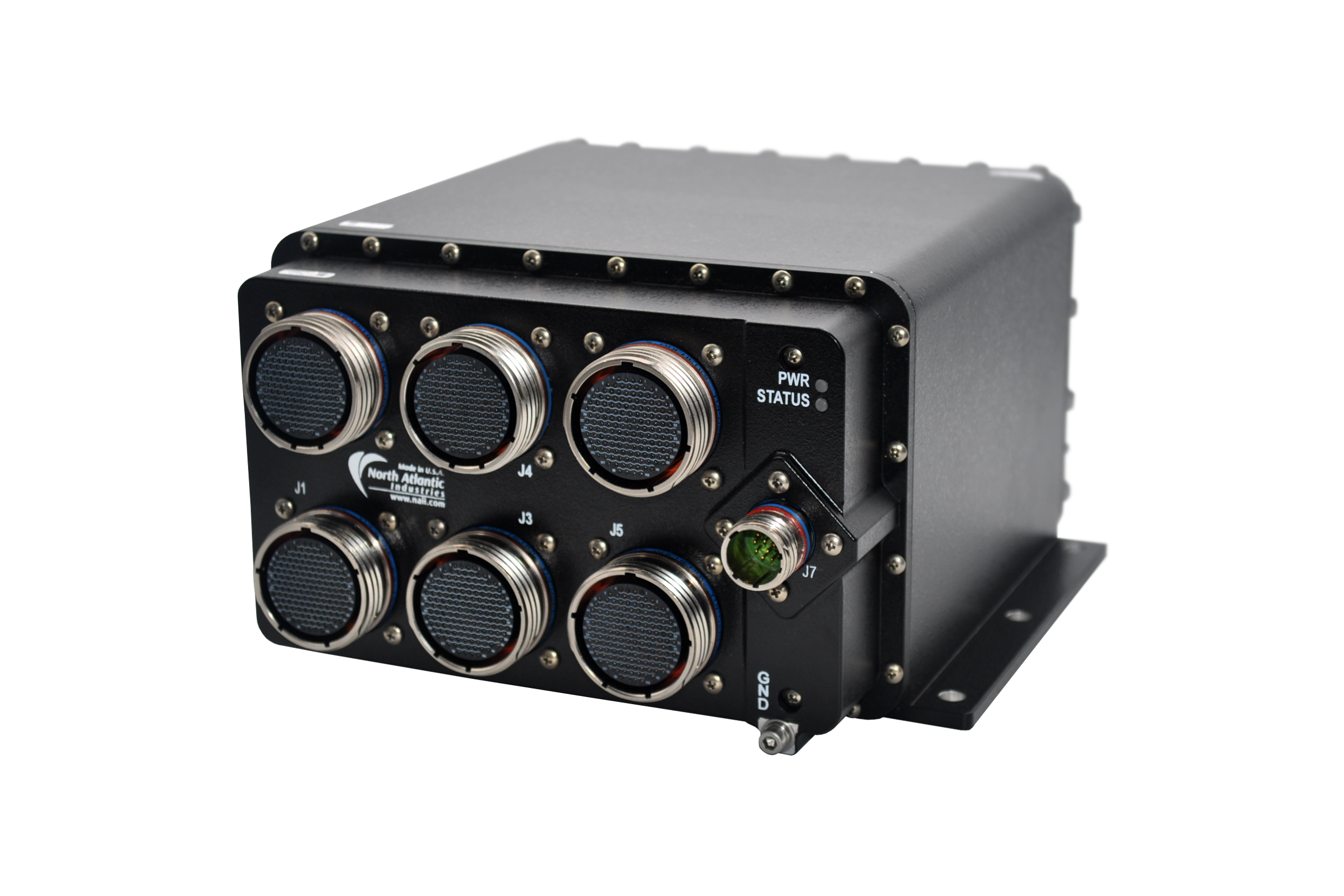

- Conduction Cooled (CC) or Air (AC) Cooled Versions
- COSA® Architecture Supports MOSA, OSA, SOSA™ and the FACE™ technical standards
- Wind River VxWorks®, Xilinx PetaLinux, Microsoft Windows® and DDC-I Deos® OS support
- Continuous Background Built-In-Test (BIT) (board/function supported as applicable)
Block Diagram
