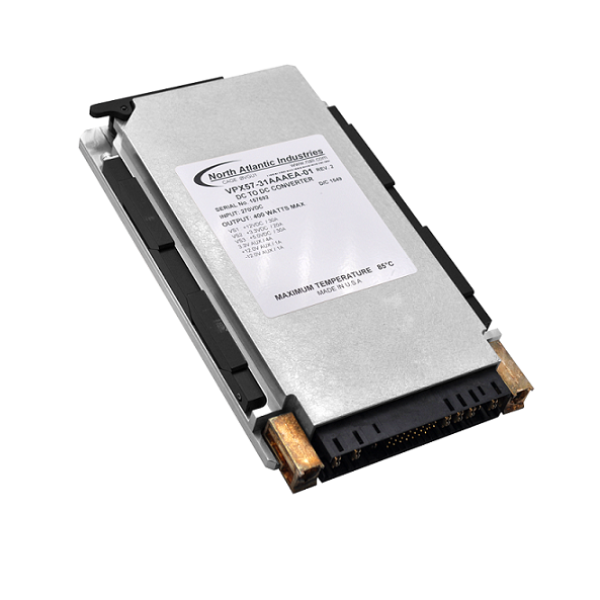

3U Model VPX57-31

NAI’s VPX57-31 is the industry’s first 500-Watt DC/DC Converter that accepts a +270 VDC Input andplugs directly into a standard 3U VPX chassis with a VITA 62 1.0” power supply slot. This off-the-shelf solution for VITA 46.0 and VITA 65 systems is compatible with VPX specifications; supports all VITA standard I/O, signals, and features; and conforms to the VITA 62 mechanical and electrical requirements for modular power supplies.

The VPX57-31 switching power supply is conduction-cooled through the card edge/wedgelock. It accepts +270 VDC input voltage and provides six outputs (per VITA 62) at up to 500 Watts.

The VPX57-31 can be used either as a single-stage module or a back-end module in a multiple power supply configuration. It supports a variety of standard features, including continuous Background Built-In-Test (BIT); user programmability; I2C communication; remote error sensing; current share and protection against transients, overvoltage, overcurrent, and short-circuits. With its intelligent design, the VPX57-31 also has the flexibility to address special needs. Derating for rugged defense and industrial applications. It is also designed to meet the many harsh environmental requirements of military applications.

Features:

  • Ideal for rugged 3U VPX power applications requiring a high voltage, +270 VDC Input
  • Standard VPX-compatible connectors and I/O per VITA 62
  • Compatible with System Management Bus per VITA 46.11
  • Off-the-shelf solution for VITA 46.0 and VITA 65 systems
  • Supports all VITA standard I/O, signals, and features
  • Accepts +270 VDC input
  • Provides six outputs and I/O at up to 500 Watts
  • Continuous Background Built-In-Test (BIT)
  • Current share
  • Programmable Over Temperature Warn / with Over Temperature Shutdown
  • Input transient protection per MIL-STD-704F
  • Environmental per MIL-STD-810G and VITA 47
  • Integrated EMI filtering per MIL-STD-461F
  • Operates at full load through the entire -40° C to +85° C temperature range
