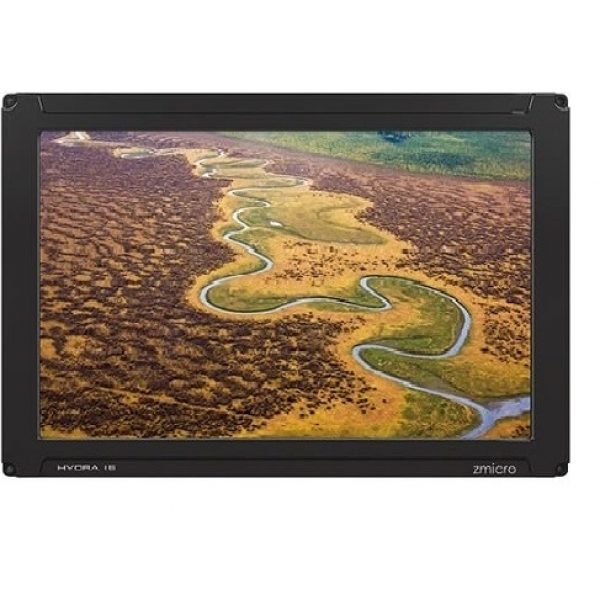

Hydra 15.6 Rugged Display

The Hydra ultra-rugged display series is designed for on-the-move display applications. Utilizing a fully machined front and rear bezel, these displays provide a fully rugged display in a sealed unit for IP67 protection.

Designed with precision, infused with the latest technology and engineered with advanced video processing capabilities, the Hydra 15 ultra-rugged ground vehicle display incorporates our innovative low-latency video controller providing optimal LCD performance for indirect vision applications allowing you to react in real-time with confidence.

Overview:

  • Panel Size 15.6″ active viewing area
  • Native Resolution 1920 x 1080
  • Backlight LED
  • Dimensions 15.7w x 9.7h x 3.5d inch
  • Weight 11.5 lbs.
  • Brightness 400 nits
  • Contrast Ratio 700:1
  • Aspect Ratio 16:9
  • Color Palette 16.7 million
  • Horizontal +/- 80°; Vertical +/- 70°
  • Connectors MIL-DTL-38999, DVI-I, USB Type-B
  • Mounting Custom 19” RETMA rack mounting
  • Controls Panel controls via API commands

Power:

  • Power Supply 18-36V DC, 6A, 100W
  • Power Consumption 20W

Environmental:

  • Operating Temperature -10° to 55°C
  • Storage Temperature -30° to 70°C
  • Humidity* Up to 95% Non condensing @ 40°C for 48 hours
  • Operating Altitude* Up to 10,000 ft.
  • Non-Op Altitude* Up to 40,000 ft.
  • Vibration* MIL-STD-810G, 1mm, 1G [4-55Hz]
  • Shock* MIL-STD-810G, 30s, 11ms, saw-tooth
  • EMI/EMC* MIL-STD-461F, <levels pending>
  • MTTR < 30 mins.
  • ESD Safety IEC 61000-4-2 8kv contact, 15kv air
  • Quality IPC/ISO 9001:2015 and applicable sections of the MIL-HDBK-454
