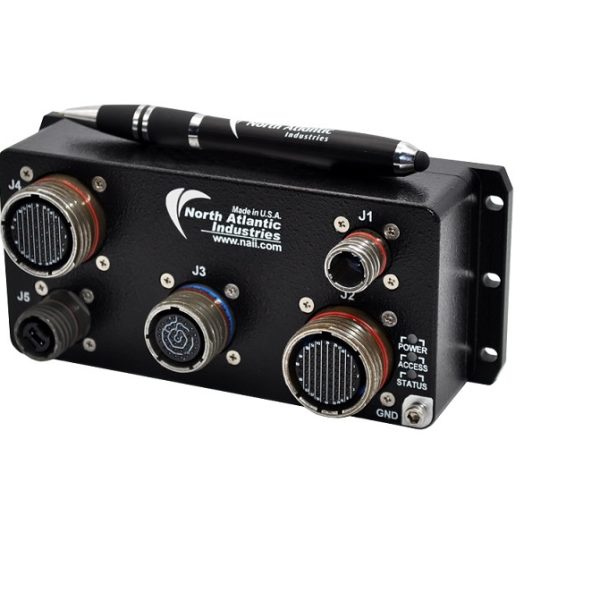

Nano Interface Unit – NIU2A

NAI’s NIU2A contains an integrated power supply, two function module slots and an optional ARM® Cortex®-A9 processor. This small, low-power unit is ideally suited for rugged military, industrial, and commercial applications. It delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems – in less time, with NO NRE.

All products are designed to operate under extreme temperature, shock, vibration, and EMI environments. EMI filters and gaskets meet or exceed MIL-STD-461F and MIL-STD-810G requirements.

The NIU2A unit includes BSP and SSK support for Wind River® VxWorks® and for Xilinx® PetaLinux (w/optional ARM Processor). In addition, SSKs are supplied with source code and board-specific library I/O APIs to facilitate system integration.

Features:

  • 2 smart function modules
  • 70+ modules to choose from
  • Customer-configurable
  • COSA® architecture
  • Optional ARM® Cortex®-A9 Dual Core 800MHz Processor
    • 512 MB DDR3L SDRAM
    • 32 GB SATA II NAND Flash
  • 2x 10/100/1000 Base-T Ethernet ports
  • 2x 1 Gb Fiber Optic (option) 850 nm
  • Wind River® VxWorks® and Xilinx® PetaLinux OS support (w/optional ARM processor)
  • 7″ W x 3″ H x 2.5″ D
  • 2.75 lb. (1.2 kg)
  • +28 VDC input / 5-25 W power dissipation (depending upon module configuration and application)
  • Designed to meet: MIL-STD-461F, MIL-STD-810G, & MIL-STD-704A
  • Continuous Background Built-In-Test (BIT)
  • VICTORY Interface Services (contact factory)
  • Operating temperature: -40° C to +71° C
