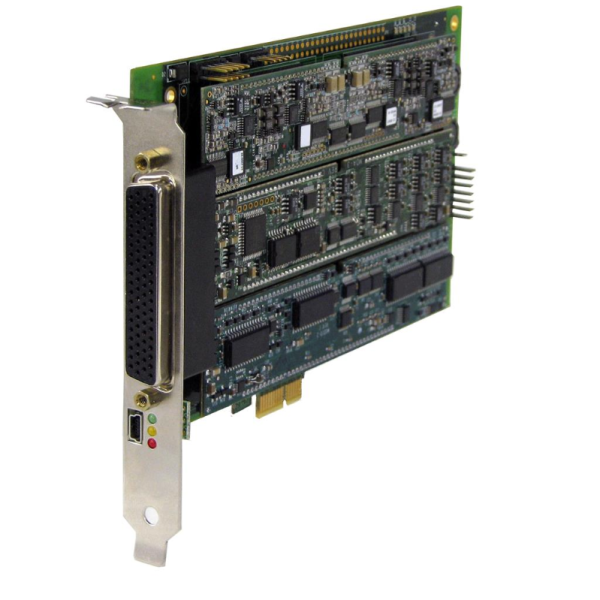

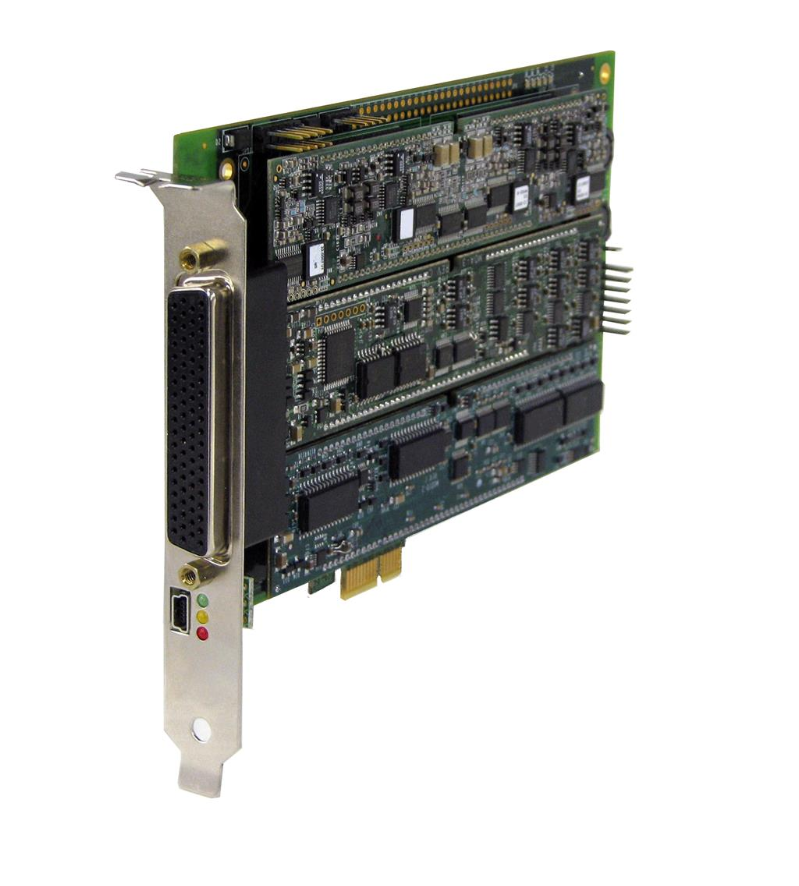

NAI’s 79C3 is a PCIe Multifunction I/O and Communication Board with three independent function module slots that can be configured with a variety of I/O and communication functions. Additional enhancements include FIFO data buffering for select modules. Using multiple DSPs, the enhanced motherboard enables higher processing power and dedicated pre-processing control for each module.

Features:

• Single-slot, half-size PCIe (x1) board
• Support for three independent, intelligent function modules
• A variety of I/O and communication modules to choose from
• Control via PCIe Bus interface
• FIFO data buffering for A/D, D/A, S/D, and LVDT functions
• Connections via front panel
• Automatic Background Built-In-Test (BIT) (module dependent)
• Software Support Kit (SSK) and drivers available
• Commercial and rugged models
• Operating temperature: 0° C to 70° C commercial, -40° C to +85° C rugged
